Home > Products & Services > FR-4 PCB

FR4 PCB Capabilities

Number of Layers:	1-40 layers
Board Thickness:	0.2mm-4.0mm
Pattern Width/Spacing:	3/3mil--20/20mil
Through-hole Diameter:	0.15mm--0.8mm
Edge Through-hole Diameter:	≥ 0.6mm
Non-Through-hole Diameter:	≥ 0.8mm
Clearance from NTH to Trace:	≥ 0.2mm
Through-hole Copper Plating Thickness:	≥18um
Spacing between Silk Screen and Solder Mask:	≥ 0.1mm
V-cut Line Length:	≥ 75mm
V-cut Spacing:	≥ 3.5mm
Slit Width:	≥ 0.8mm
Slit Gap:	≥ 2.0mm
Connection Width:	≥ 1.6mm

See detailed FR4 PCBspecifications

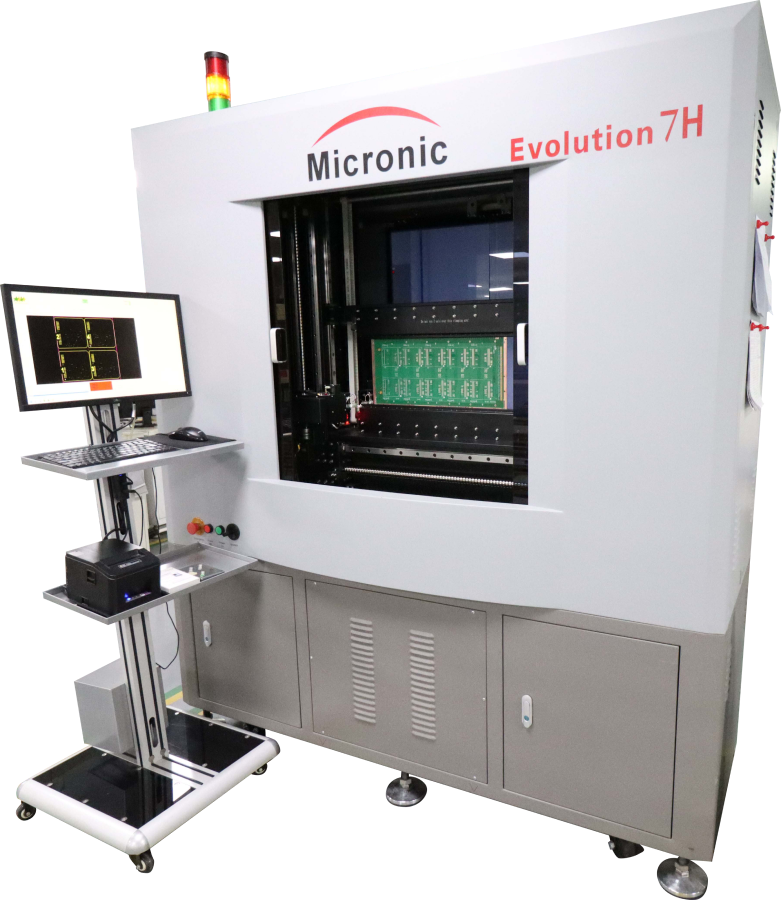

What can we offer: Strict Quality Control; We conduct inspections and electrical testing at every stage of the process to ensure that all shipped products meet quality standards.

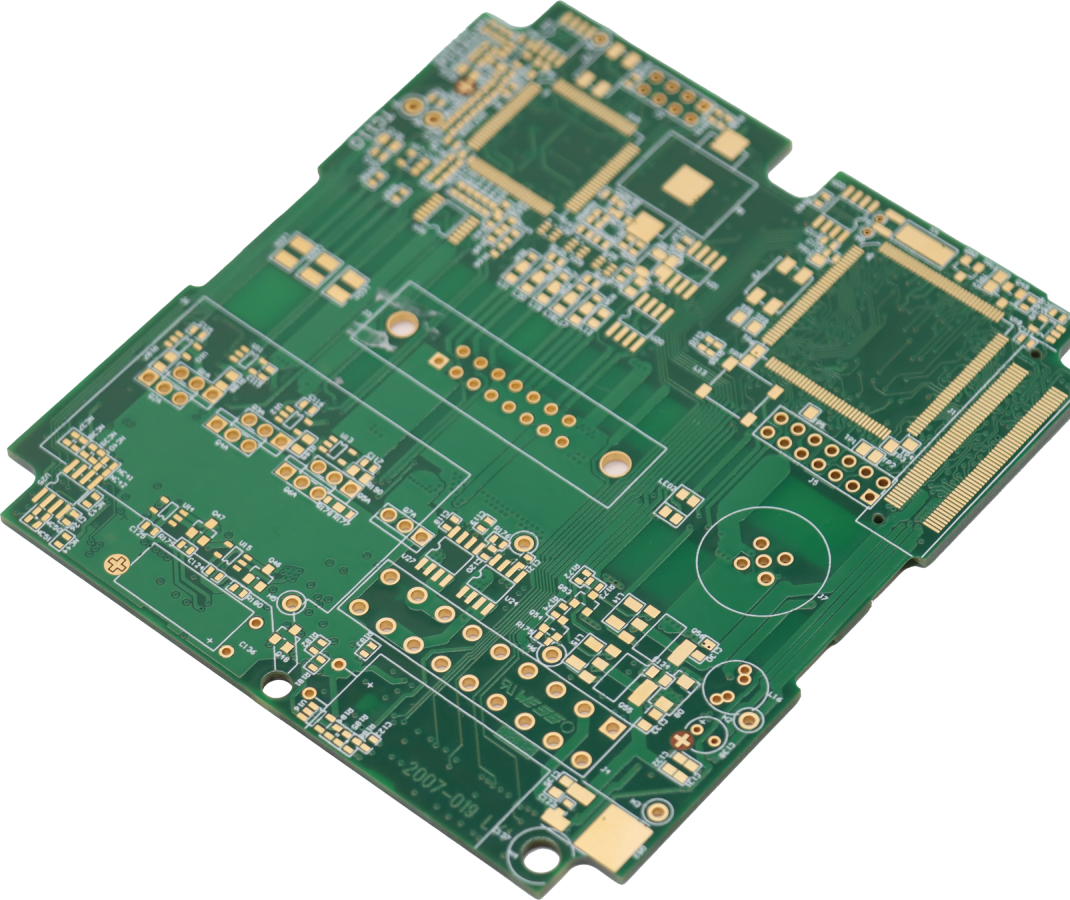

What can we offer: Flexible Production System; From prototyping in as little as 12 hours to mass production, we flexibly adjust production plans according to the urgency of your project.

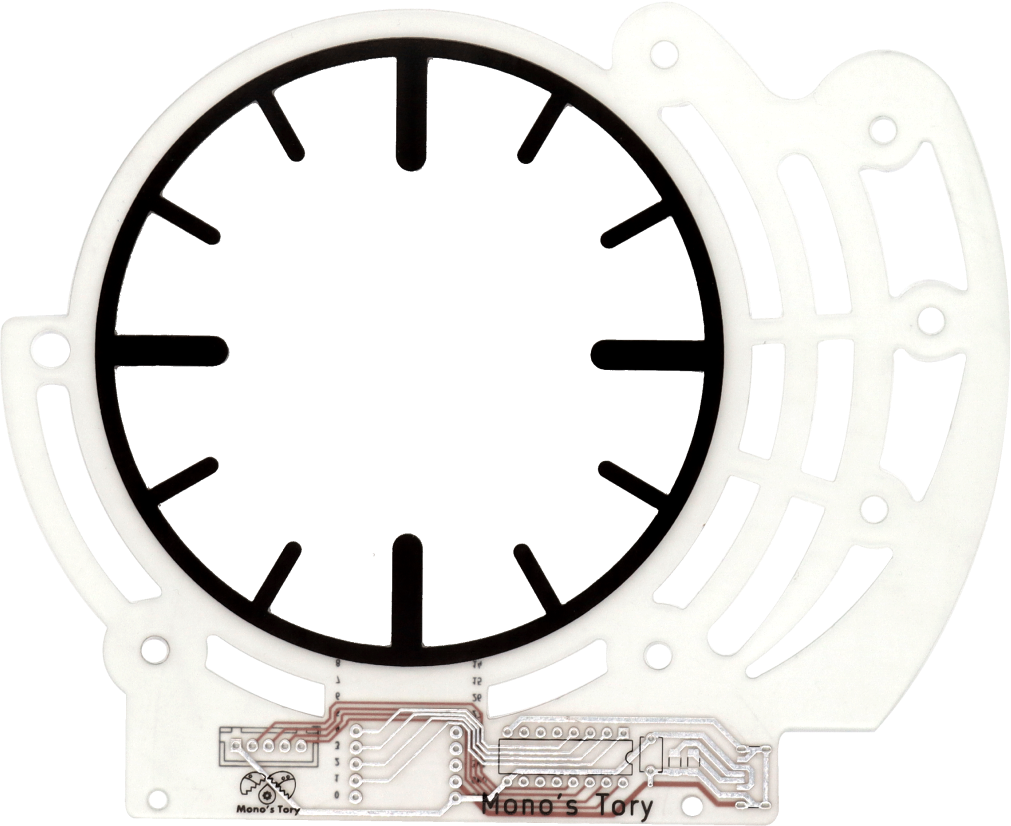

What can we offer: Comprehensive Engineering Support; We provide Gerber data verification, DFM (Design for Manufacturability) analysis, and technical feedback to reduce the risk of rework.

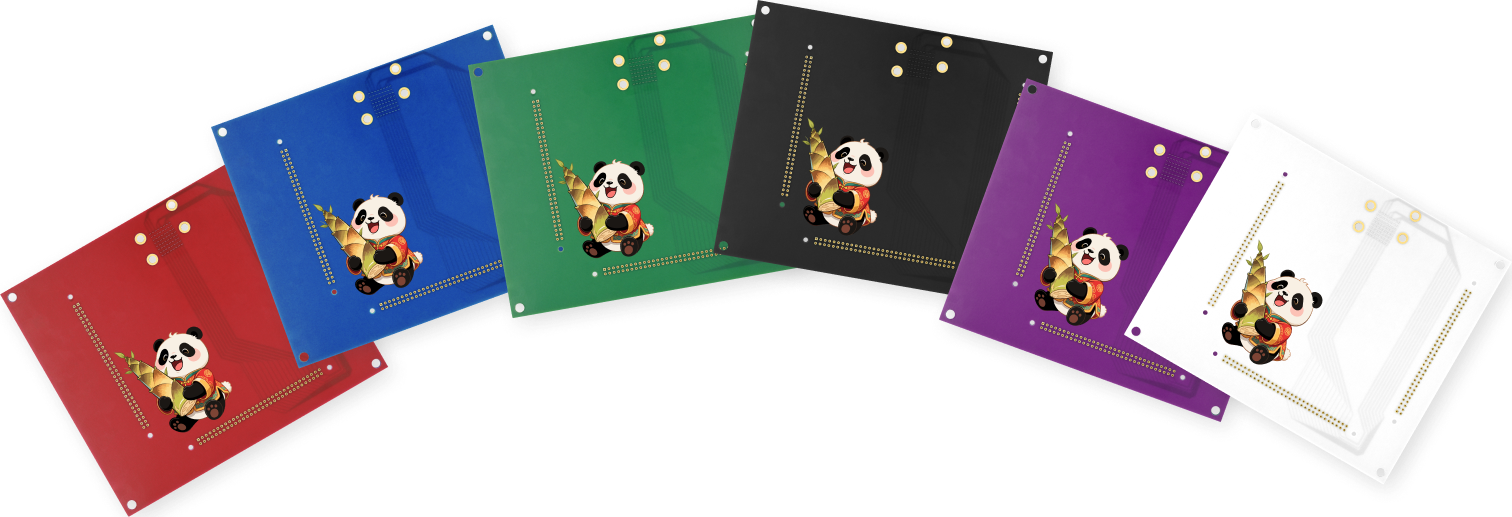

Customizable Colors and Patterns

From standard appearance to custom appearance tailored to individual requirements: ① Select your desired board color and specify your custom requirements in the remarks section when ordering.; ② Upload the Gerber file including design information.; ③After confirmation by our engineers and verification of payment, we will proceed to the production process.

How to order? 3 Easy Steps

STEP 1 -- Specifications Setting: Click "Instant Quote," select the required specifications, and add them to your cart.

STEP 2 -- Data Upload: Upload the Gerber files for your order in the cart and wait for engineer confirmation.

STEP 3 -- Payment: Make your payment after confirmation. You can check the production progress at your personal account.

Explore More

HDI PCB

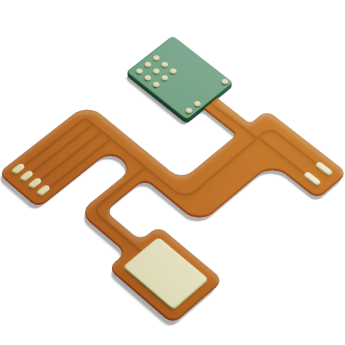

Flexible & Rigid-Flex PCB

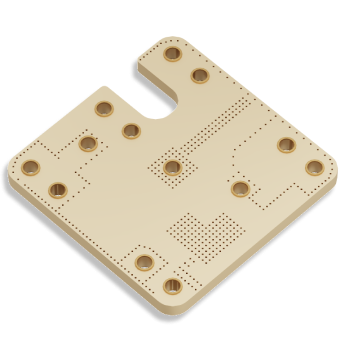

Metal Core PCB

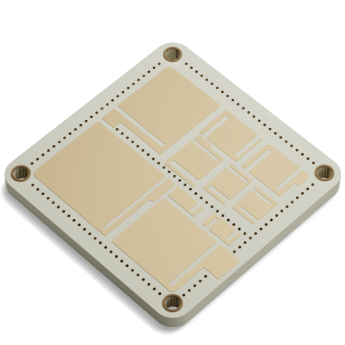

Rogers PCB
