Home > Products & Services > FR-4 PCB

FR4 PCB Capabilities

Number of Layers:	1-40 layers
Board Thickness:	0.2mm-4.0mm
Line Width / Spacing:	3/3 mil – 20/20 mil
Plated Through Hole (PTH) Diameter:	0.15 mm – 0.8 mm
Edge Plated Through Hole Diameter:	≥ 0.6mm
Non-Plated Through Hole (NPTH) Diameter:	≥ 0.8mm
Clearance Between NPTH and Trace:	≥ 0.2mm
PTH Copper Plating Thickness:	≥18um
Silkscreen to Solder Mask Clearance:	≥ 0.1mm
V-Cut Score Length:	≥ 75mm
V-Cut Channel Spacing:	≥ 3.5mm
Routing Slot Width:	≥ 0.8mm
Routing Slot Gap:	≥ 2.0mm
Bridge Width	≥ 1.6mm

See detailed FR4 PCBspecifications

What can we offer: Strict Quality Control; We conduct inspections and electrical testing at every stage of the process to ensure that all shipped products meet quality standards.

What can we offer: Flexible Production System; From prototyping in as little as 12 hours to mass production, we flexibly adjust production plans according to the urgency of your project.

What can we offer: Comprehensive Engineering Support; We provide Gerber data verification, DFM (Design for Manufacturability) analysis, and technical feedback to reduce the risk of rework.

Customizable Colors and Patterns

From standard appearance to custom appearance tailored to individual requirements: ① Select your desired board color and specify your custom requirements in the remarks section when ordering.; ② Upload the Gerber file including design information.; ③After confirmation by our engineers and verification of payment, we will proceed to the production process.

How to order? 3 Easy Steps

STEP 1 -- Specifications Setting: Click "Instant Quote," select the required specifications, and add them to your cart.

STEP 2 -- Data Upload: Upload the Gerber files for your order in the cart and wait for engineer confirmation.

STEP 3 -- Payment: Make your payment after confirmation. You can check the production progress at your personal account.

Explore More

HDI PCB

Flexible & Rigid-Flex PCB

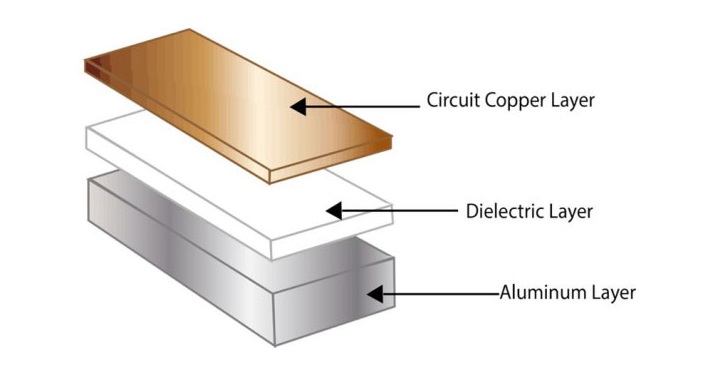

Metal Core PCB
